Introduction
Customers often ask, “Which is better, alumina or zirconia?” “What is the difference between silicon carbide and silicon nitride?” or “Which type of wear-resistant ceramic should I choose?”
In reality, no single material is a one-size-fits-all solution. If we select the wrong material, even the most expensive option will fail to perform as intended.
Below, we will provide a detailed ceramic material selection guide of these four common materials—alumina, zirconia, silicon carbide, and silicon nitride—to help you make an informed decision.

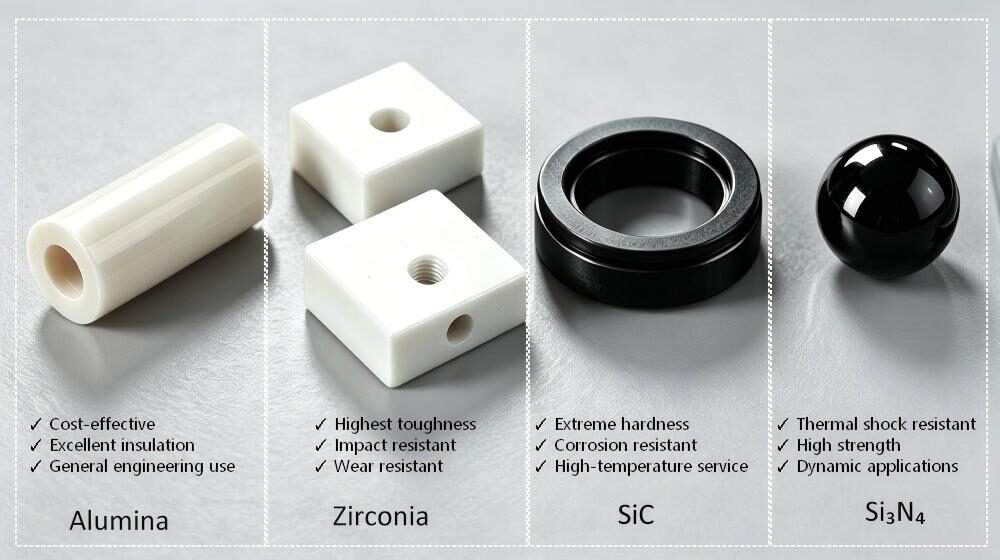

Properties of These Four Materials
Alumina (Al2O3)
Alumina is one of the most engineering ceramics due to its cost-effectiveness, high hardness (typically 1520 HV for 99% alumina), excellent electrical insulation, and relatively good thermal conductivity among oxide ceramics.
It maintains stable performance at temperatures up to approximately 1600°C, making it suitable for a wide range of industrial applications.
However, alumina has relatively low fracture toughness compared with zirconia and silicon nitride. As a result, it is more susceptible to cracking under impact, bending, or sudden mechanical loading. Standard alumina ceramics are also electrically insulating and do not provide inherent antistatic properties.
Zirconia (ZrO2)
The most outstanding property of zirconia ceramics is its exceptional fracture toughness, which is typically about twice that of alumina. They also offer high flexural strength and excellent resistance to crack propagation, making them one of the toughest engineering ceramics available.
In addition, zirconia exhibits low thermal conductivity, good wear resistance, and excellent corrosion resistance. These properties make it suitable for applications requiring mechanical durability and thermal insulation.
However, certain zirconia grades may experience hydrothermal aging under prolonged exposure to high-temperature steam environments. Zirconia is also significantly more expensive than alumina, typically costing three to five times more depending on grade and manufacturing process.
Silicon Carbide (SiC)
Of the four materials, silicon carbide has the highest hardness (typically 2800 HV for SSiC). It offers excellent thermal conductivity, a low coefficient of thermal expansion, and outstanding high-temperature resistance.
However, silicon carbide is expensive to process, costing 5 to 8 times more than alumina. Furthermore, the electrical resistivity of silicon carbide is influenced by material composition, impurity content, and manufacturing processes. Therefore, strict quality control is required for applications demanding high consistency in insulation performance.
Additionally, silicon carbide is a brittle ceramic material with low fracture toughness and is not suitable for operating conditions subject to significant impact loads.
Silicon Nitride (Si3N4)
Silicon nitride offers one of the best overall performance balances among advanced ceramics. It combines high strength, excellent fracture toughness (typically 6–7 MPa·m1/2), superior wear resistance, outstanding thermal shock resistance, and low friction characteristics.
It also maintains its mechanical properties well at elevated temperatures, making it suitable for demanding engineering applications.
However, its material cost is 6 to 10 times that of alumina, and it is more difficult to machine. Although it is not the best in individual properties (for example, its thermal conductivity is inferior to that of silicon carbide), it excels in its balanced performance across all areas.
Material Property Comparison Table
Earlier, we discussed the main advantages and disadvantages of these four materials—alumina, zirconia, silicon carbide, and silicon nitride. Now, we will compare their key properties side by side.
| Dimension | 99% Alumina | Zirconia 3Y-TZP | Pressureless Sintered SiC (SSiC) | Silicon Nitride |
| Flexural Strength (25℃) | ≥ 310 MPa | > 800 MPa | > 480 MPa | ≥ 700 MPa |
| Fracture Toughness | 4-5 | 6.5-8 | 4 | 6-7 |
| Vickers Hardness | 1520 HV | 1230 HV | 2800 HV | 1420 HV |
| Thermal Conductivity (25℃) | 29 W/m·k | 3 W/m·k | 120-150 W/m·k | 20 W/m·k |
| Coefficient of Thermal Expansion | 6.2-8 | 9-11 | 4 | 3-3.2 |
| Volume Resistivity (25°C) | > 10¹⁴ | > 1013 | < 105 | > 10¹⁴ |
| Relative Cost | 1 (Base) | 3–5 times | 5–8 times | 6–10 times |
| Summary | Affordable and adequate performance | Best toughness | High thermal conductivity, and ultra-hardness | Well-rounded overall performance |
Note: The above are typical values. The values may vary depending on the purity of the materials and the production process.
Typical Applications
1. Alumina: Circuit boards, packaging housings, high-temperature furnace tubes, wear-resistant liners, and seal rings.
Suitable for applications where cost-effectiveness and durability are prioritized; avoid using in environments subject to high impact loads.
2. Zirconia: Ceramic fixtures, thin-wall components, bearing elements, wear-resistant parts, and precision mechanical components.
Suitable for applications requiring high fracture toughness, resistance to mechanical shock, and complex thin-walled geometries.
3. Silicon Carbide: Mechanical seals, wear-resistant nozzles, kiln furniture, semiconductor components, and thermal management parts.
Its exceptional hardness, wear resistance, thermal conductivity, and high-temperature stability make it well suited for abrasive, corrosive, and heat-intensive applications.
However, its relatively low fracture toughness limits its performance under severe impact loading, and prolonged exposure to strong alkaline environments should be avoided.
4. Silicon Nitride: High-speed bearings, engine components, air intakes, and high-requirement seal rings.
Its overall performance is well-balanced, featuring high strength, good fracture toughness, wear resistance, high temperature resistance, and corrosion resistance, making it suitable for parts with extremely high requirements for lifespan and reliability.
Due to its higher cost, it is recommended for use only when the budget allows or in critical operating conditions.
In summary: For the same part, multiple materials can meet functional requirements; the main differences lie in service life, reliability, and cost.
Ceramic Material Selection Table
In engineering applications, selecting the right ceramic material is a matter of both performance and cost. To help engineers and procurement professionals make quick decisions, we can use the table below for initial screening.
| Your Needs | Preferred Material | Alternative Material | Description |
| Cost-sensitive, standard wear-resistant/insulating components | Alumina | Zirconia (high-end alternative) | The best value for money, good insulation, suitable for most industrial parts. |
| High toughness/impact resistance/mechanical damage resistance | Zirconia | Silicon Nitride | Zirconia offers the highest toughness; silicon nitride is next best, suitable for dynamic loads. |
| High thermal conductivity/high wear resistance/suitability for high-temperature corrosive environments | Silicon Carbide (SSiC) | Silicon Nitride | SiC is better suited for wear resistance and thermal conductivity; silicon nitride is more suited for structural components. |
| High strength + balanced overall performance | Silicon Nitride | Zirconia | Si₃N₄ offers the most balanced overall performance and is suitable for critical structural components. |
| High-speed bearings (>20,000 rpm) | Silicon Nitride | Zirconia (low speed/special conditions) | Si₃N₄ is the standard ceramic material for bearings. |
| High-temperature structural components (>1300℃) | Silicon Carbide (SSiC) | Silicon Nitride | SiC has the best high-temperature resistance; alumina is next best but exhibits a significant drop in strength. |
Case Studies on Ceramic Material Selection
Case 1: Upgrading a High-Speed Spindle Bearing from Zirconia to Silicon Nitride
A customer operating a high-speed spindle at 24,000 RPM experienced excessive heat generation and vibration when using zirconia ceramic bearings. Bearing temperatures increased significantly during extended operation, and bearing life fell short of expectations.
After switching to silicon nitride bearings, operating temperatures were noticeably reduced under the same running conditions.
The lower density and superior high-speed performance of silicon nitride also allowed the spindle to operate more smoothly at higher rotational speeds.
As a result, bearing service life increased substantially while maintenance frequency decreased.
This case demonstrates that for high-speed rotating equipment, selecting a ceramic with lower density and better dynamic performance can be more important than focusing solely on hardness or wear resistance.
Case 2: Reducing ESD and Particle Generation in Wafer Handling
A semiconductor manufacturer experienced wafer handling issues caused by electrostatic charge accumulation and particle generation from polymer-coated fixtures.
After evaluating alternative materials, the company adopted semiconductive zirconia with a controlled resistivity of approximately 10⁷ Ω·cm.
The new fixtures provided controlled static dissipation while offering significantly higher wear resistance than the previous polymer-based design.
As a result, particle contamination was substantially reduced, fixture service life increased several times, and wafer yield improved.

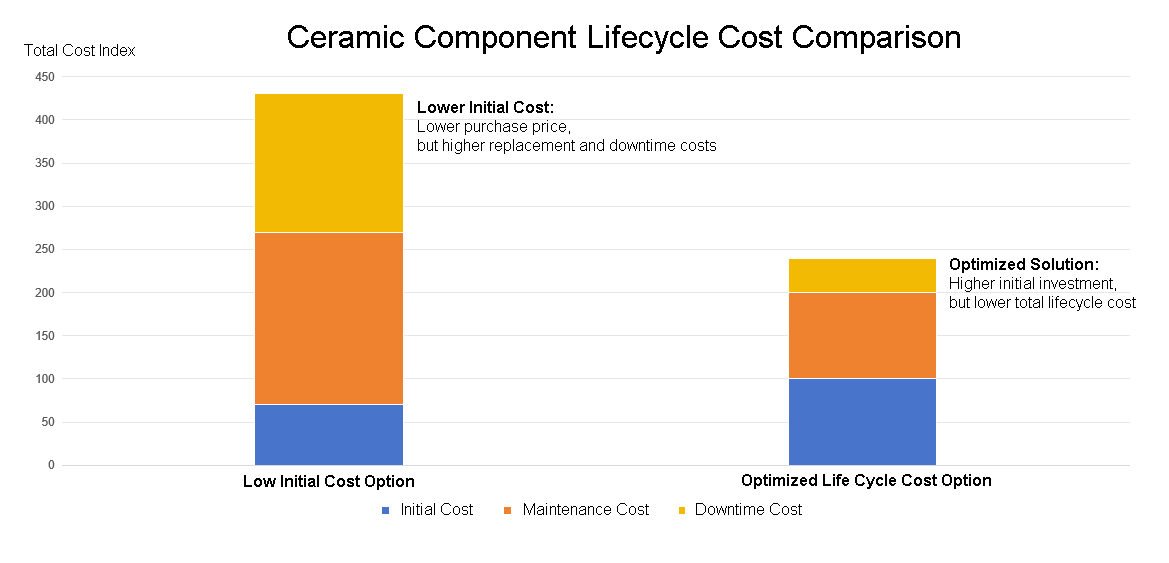

Although the ceramic fixtures had a higher initial purchase cost, the overall cost of ownership was reduced through longer service intervals and improved process stability.
This example highlights how material selection can influence not only component durability but also manufacturing yield and process reliability.

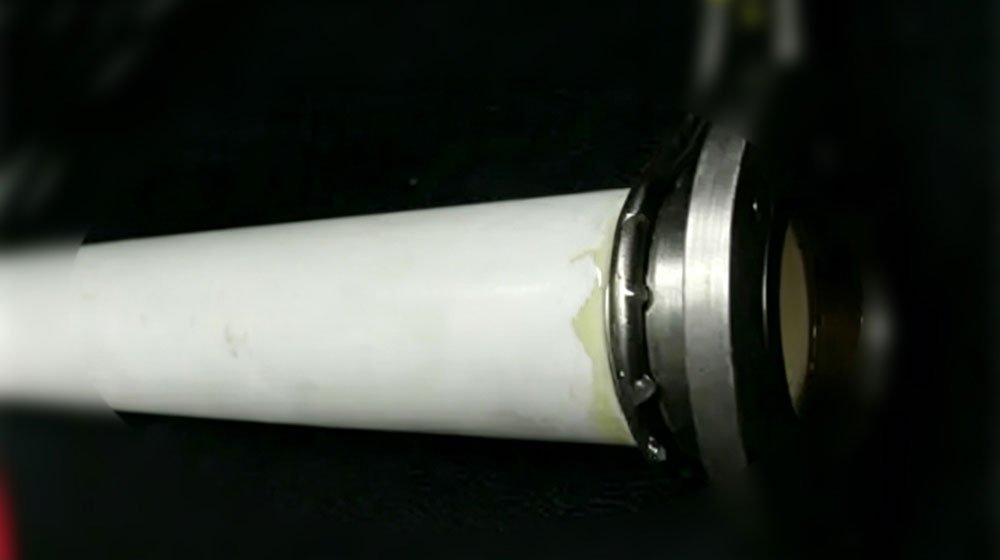

Case 3: When Alumina Outperformed Silicon Carbide
A customer operating a heat-treatment furnace at 1250℃ experienced repeated cracking of silicon carbide furnace tubes due to frequent thermal cycling caused by opening and closing the furnace door dozens of times per day.
After evaluating the application, the furnace tubes were redesigned using 99% alumina with a slightly increased wall thickness.
The modified tubes achieved more than three years of service without failure while significantly reducing material costs.
This case illustrates an important principle in ceramic selection: the material with the highest specification is not always the best choice.
Component geometry, wall thickness, thermal gradients, and operating conditions can be just as important as the material itself.
Frequently Asked Questions
Q1: Which is more wear-resistant, alumina ceramic or zirconia ceramic?
A1: It depends on the specific type of wear:
Abrasive Wear: Alumina ceramics are generally better because their hardness is higher than that of zirconia.
Impact Wear: Zirconia is more suitable because its fracture toughness is usually twice that of alumina or even higher (depending on the grade).
Q2: Should we use silicon carbide or silicon nitride for the seal ring?
A2: It depends on the operating conditions:
Silicon Carbide (SiC): More suitable for applications requiring high wear resistance, strong corrosion, high thermal conductivity, and dry friction; it is a typical “extreme wear-resistant material.”

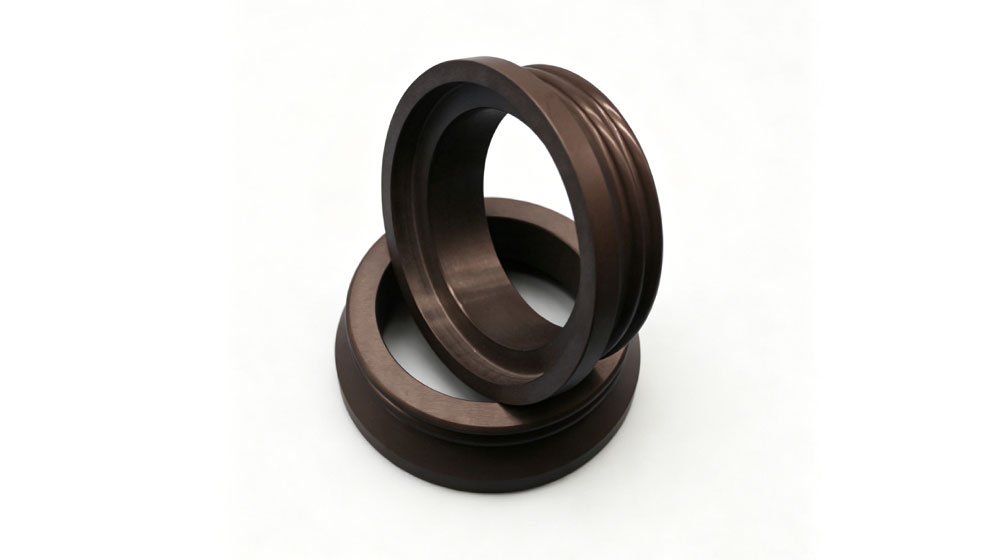

Silicon Nitride (Si3N4): More suitable for applications involving impact, thermal shock, water lubrication, or steam environments; it offers superior crack resistance.
In summary: SiC is more “hard + thermally conductive + extremely wear-resistant,” while Si3N4 is more “tough + impact-resistant + high reliability.”
Q3: Which ceramic material is most resistant to high temperatures?
A3: Let’s take a look at the high-temperature resistance of the following four most common ceramic materials:
Silicon Carbide (SiC): It is suitable for continuous use in air at temperatures of approximately 1200-1400℃ and is also usable for short periods at higher temperatures (depending on the oxidizing environment), though oxidation will occur, forming a protective layer of SiO2.
Silicon Nitride (Si3N4): The upper limit for general engineering applications is approximately 1200-1400℃ (in air), with higher short-term temperatures possible, though it will gradually oxidize at high temperatures.
Alumina (Al2O3): Its melting point is approximately 2050℃, but it can be used continuously at around 1500-1600℃ in engineering applications (depending on purity and structure).
Zirconia (ZrO2): It has good high-temperature stability, but it undergoes hydrothermal degradation in environments containing water vapor at 200-300℃, leading to a decline in performance; this is its typical weakness.
Q4: Silicon nitride is too expensive; wouldn’t zirconia be a better choice?
A4: We need to conduct a comprehensive assessment based on operating conditions, not just cost. This is because the key to material selection lies in whether we can accept its failure modes.
Advantages of zirconia: Lower cost, good toughness.
Key risk in using zirconia: Hydrothermal aging may occur in high-temperature, high-humidity environments or under prolonged damp-heat conditions, leading to a decline in performance.
Advantages of silicon nitride: Significantly higher reliability in environments characterized by high temperature, high humidity, high load, and thermal shock.
Q5: Are ceramic parts prone to breaking?
A5: Whether ceramics are prone to breaking depends on the material’s toughness and structural design:
Alumina, Silicon Carbide: High hardness and good wear resistance, but low fracture toughness, making them sensitive to impact.
Zirconia, Silicon Nitride: Higher fracture toughness, with better impact resistance and crack resistance.
However, a common characteristic of all ceramics is: Structural sensitivity—areas such as thin walls, sharp corners, hole edges, and stress concentration zones remain high-risk points for failure.
Conclusion
Selecting the right ceramic material is critical not only to product performance but also directly impacts service life, maintenance costs, and overall project costs.
If you are unsure whether to choose alumina, zirconia, silicon carbide, or silicon nitride, simply send us your application details, including operating temperature, medium environment, load conditions, motion profile, and critical dimensional requirements.
Our engineering team will provide free material selection recommendations and assist in evaluating expected service life based on experience with similar applications, helping you avoid unnecessary trial-and-error costs early in the project.
