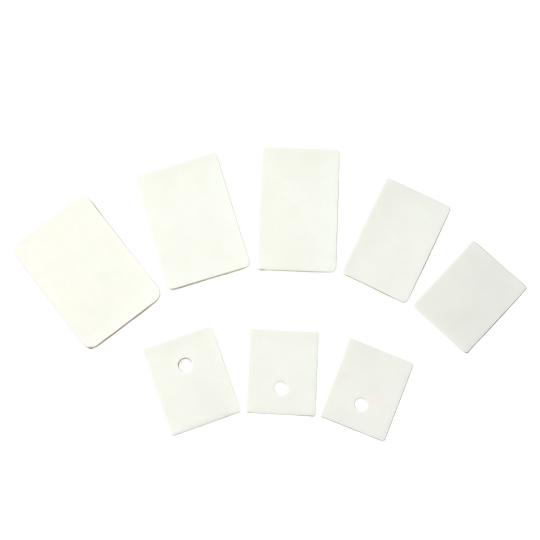

Alumina Ceramic Thermal Plate

Product Properties

Alumina ceramic thermal plates are designed to provide reliable heat dissipation and electrical insulation in compact electronic and industrial systems. The following key properties summarize their main material and functional characteristics.

Material	Alumina Ceramic (Al2O3)
Available Purity	95% / 96% / 99% / 99.6%
Typical Thickness	Customized per application
Thermal Conductivity	24–30 W/m·K
Machining Options	Holes, Slots, Grooves, Custom Shapes

Send Inquiry Now

What Is an Alumina Ceramic Thermal Plate

An alumina ceramic thermal plate is a ceramic component designed for heat conduction and electrical insulation in passive thermal management applications.

Unlike ceramic substrates primarily used as electronic circuit carriers, alumina ceramic thermal plates are mainly used for thermal dissipation, structural support, and electrical isolation. Most designs do not require metallization or conductive circuit layers.

Typical configurations include:

Flat ceramic plates

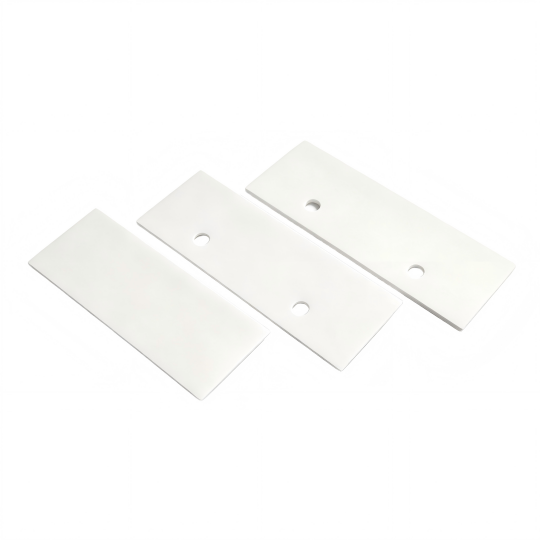

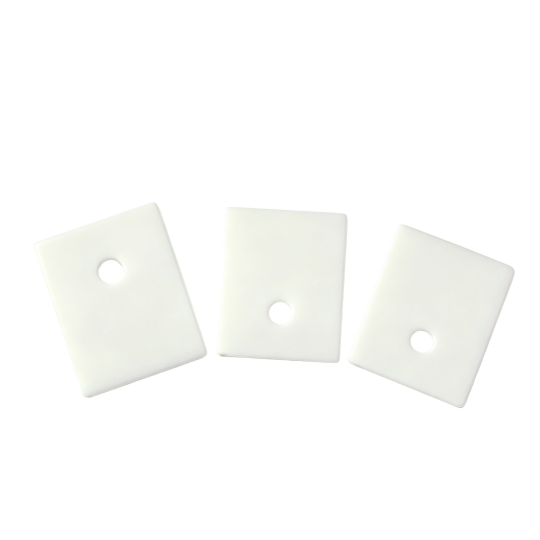

Plates with mounting holes
Precision-ground thermal components
Customized machined ceramic parts

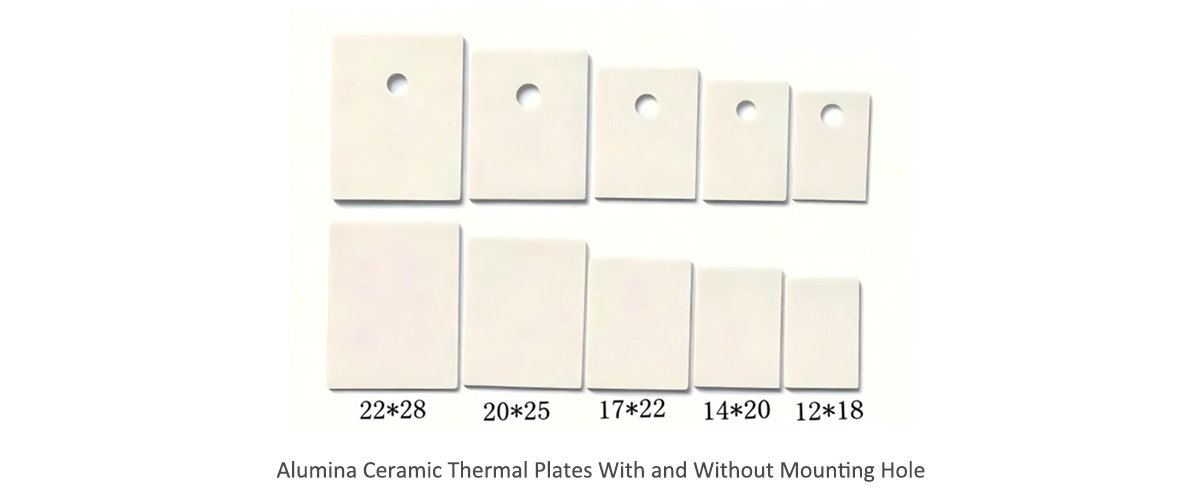

Alumina Ceramic Thermal Plates With and Without Mounting Hole

Why Use Alumina for Thermal Management

Alumina ceramics provide a practical balance between thermal conductivity, electrical insulation, mechanical strength, and manufacturing cost.

Compared with metal materials, alumina ceramics offer inherent electrical insulation and improved corrosion resistance. Compared with high-end thermal ceramics such as aluminum nitride, alumina provides a more economical solution for medium-power heat dissipation applications.

Different alumina purity grades are available to meet varying thermal and cost requirements:

Alumina Purity	Typical Characteristics	Recommended Applications
95% / 96% Alumina	Cost-effective thermal insulation and heat dissipation performance	General industrial thermal management applications
99% Alumina	Higher thermal conductivity and improved electrical performance	Applications requiring enhanced thermal and electrical properties
99.6% Alumina	Higher thermal stability and lower impurity levels	Precision applications with stricter thermal performance requirements

In one customer evaluation project involving 22 × 17 × 1 mm alumina ceramic thermal plates, comparative testing of 96%, 99%, and 99.6% alumina materials showed relatively small thermal performance differences under the tested conditions, although the 99.6% alumina version achieved the best overall heat dissipation performance.

Actual thermal management efficiency depends not only on ceramic thermal conductivity, but also on interface design, contact resistance, mounting structure, and airflow conditions.

Key Features

Alumina ceramic thermal plates combine thermal management capability with electrical insulation and structural reliability. The following features make them suitable for a wide range of electronic and industrial heat dissipation applications.

Electrical Insulation with Thermal Conductivity

Alumina ceramics combine moderate thermal conductivity with excellent electrical insulation, making them suitable for applications where metal heat spreaders cannot be used directly.

Stable Performance at Elevated Temperatures

Alumina thermal plates maintain dimensional stability and insulation performance under continuous high-temperature conditions.

Corrosion and Chemical Resistance

The ceramic material resists oxidation, moisture, and many corrosive environments.

Mechanical Strength and Wear Resistance

Compared with many polymer-based thermal materials, alumina ceramics provide higher rigidity and longer service life.

Precision Machining Capability

Custom holes, slots, grooves, and precision geometries can be manufactured according to drawings.

Thermal Plates vs Ceramic Substrates

Although both thermal plates and ceramic substrates are made from ceramic materials, their structures and primary functions are different. Understanding these differences helps clarify which type of ceramic component is more suitable for a specific thermal management or electronic application.

Item	Thermal Plate	Ceramic Substrate
Primary Function	Heat dissipation & insulation	Circuit carrier
Metallization	Usually not required	Commonly required
Conductive Circuits	Normally absent	Usually present
Typical Use	Thermal management	Electronic packaging
Structure Focus	Thermal & mechanical	Electrical integration

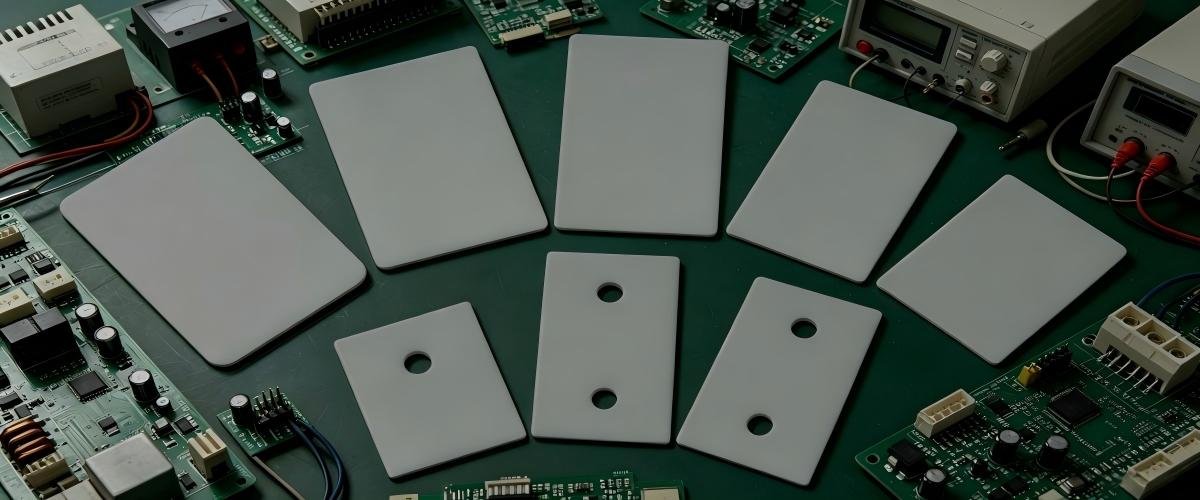

Typical Applications

Alumina ceramic thermal plates are widely used in applications that require both heat dissipation and electrical insulation. Their stable thermal performance and structural reliability make them suitable for various electronic and industrial environments.

1. Power Resistors

Provide heat dissipation and electrical insulation for high-power resistor systems.

2. Heating Equipment

Used as thermally stable insulating components in heating and temperature-control systems.

3. High-Voltage Applications

Maintain reliable electrical insulation under elevated thermal operating conditions.

4. Electrical Insulation Systems

Used as insulating thermal barriers between heat-generating components and metal structures.

5. Transformers & Inductors

Provide thermal management and insulation support for magnetic components and coil assemblies.

6. Industrial Equipment

Applied as insulating thermal plates in mechanically demanding industrial environments.

Customization Options

Custom alumina ceramic thermal plates can be manufactured according to drawings or application requirements.

Available customization options include:

Thickness and dimensions
Hole patterns and slots
Surface finish (as-fired / ground / polished)
Precision machining features
Flatness and tolerance control
Material purity selection

Typical configurations include flat plates, mounting-hole structures, and customized thermal ceramic components for thermal management applications.

What is an alumina ceramic thermal plate used for?

It is used for passive thermal management in electronic and industrial systems where both heat dissipation and electrical insulation are required.

Is a ceramic thermal plate the same as a ceramic heat sink?

No. Ceramic thermal plates are usually bare ceramic components without integrated cooling structures, metallization, or circuit layers.

Is a ceramic thermal plate the same as a ceramic heating plate?

No. Ceramic thermal plates are passive heat-conduction components used for heat dissipation, while ceramic heating plates are active heating elements designed to generate heat.

Does higher alumina purity improve thermal performance?

In general, higher-purity alumina provides better thermal conductivity. However, actual thermal performance also depends on interface conditions, mounting design, and overall thermal management structure.

Can mounting holes and custom shapes be manufactured?

Yes. Custom holes, slots, grooves, and precision-machined geometries can be manufactured according to drawings or samples.
